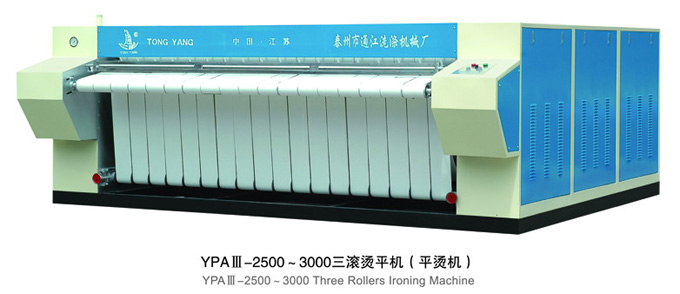

床单烫平机
详细介绍：
一、主要特点
1、本机采用变频调速，用户可根据不同织物的需要及熨平状况选用合适的熨平速度。
2、采用烘筒通压蒸汽的办法或红外线电加热石英管，加热滚筒表面，热效率较高。
3、本机采用减速机减速，速比大，超负荷能力强，噪音低。
4、采用链条传动，具有较大的承载能力。
5、织物输送系统采用宽锭带，避免高幅帆布在传动中难于坚决的游动现象。
6、各滚筒之间具有一定的速差，熨平效果更好。
7、烘筒的蒸汽进口采用旋转接头密封无漏气，使用寿命长。
8、本公司已成功研制四、五、六滚熨平机，用户可根据具体的情况对熨平机进行升级改造。
9、本系列机型具有蒸汽加热和电加热两种加热形式可供选择。
The main features
1, the machine adopts frequency control of motor speed, the user can according to the needs of different fabric and ironing condition to
choose suitable ironing speed.
2, the drying cylinder pressure steam method or infrared electric heating quartz tube, heating roller surface and high thermal efficiency.
3, the machine adopts reducer reducer, speed ratio, overload ability, low noise.
4, USES the chain transmission, has higher bearing capacity.
5, fabric conveyor system with wide spindle tape, avoid high canvas is difficult to resolute walk phenomenon in the drive.
6, each has a certain speed difference between drum, ironing effect is better.
7, the drying cylinder steam import using rotary joint seal, no leakage, long service life.
8, the company has successfully developed four, five, six rolling ironing machine, the user can according to the specific situation to upgrade
the ironing machine.
9, this series of models with steam heating and electric heating two heating forms to choose from.
|
二、烫平机主要技术参数(Main Technical specifications)
|
|
型号
model |
外形尺寸(mm）
overall dimensions |
滚筒尺寸及数量
Roller dimension(mm) and quantity |
功率(kw)
power |
电加热功率(kw)
Electric heating power |
熨烫速度
(m/min) ironing speed |
蒸气压力
(Map) steam pressure |
备注Note
|
|
YPAⅠ-1800
|
2800*1400*1500
|
φ800*1800/1
|
0.75
|
24
|
0-7
|
0.4-0.6
|
电加热型与蒸汽型 Electric or steam type
|
|
YPAⅠ-2500
|
3500*1400*1500
|
φ800*2500*1
|
0.75
|
30
|
0-7
|
0.4-0.6
|
|
|
YPAⅠ-2800
|
3800*1400*1500
|
φ800*2800/1
|
0.75
|
36
|
0-7
|
0.4-0.6
|
|
|
YPAⅠ-3000D
|
4000*1400*1500
|
φ800*2800/1
|
0.75
|
39
|
0-7
|
-
|
|
|
YPAⅡ-2800D
|
3800*2400*1500
|
φ800*2800/2
|
1.5
|
72
|
0-20
|
-
|
|
|
YPAⅡ-3000
|
4000*2400*1500
|
φ800*3000/2
|
1.5
|
-
|
0-20
|
0.4-0.6
|
|
|
YPAⅢ-3000
|
4000*3400*1500
|
φ800*3000/3
|
2.2
|
-
|
0-26
|
0.4-0.6
|
|
|
YPAⅠ-2800M
|
3900*2000*1700
|
φ1166*2800/1
|
1.1
|
-
|
0-15
|
-
|
烧木材型,外加引风机与燃烧炉 Wood-buring type with blower
|
|
YPAⅠ-3000M
|
4100*2000*1700
|
φ1166*3000/1
|
1.5
|
-
|
0-15
|
-
|
|
|
YPAⅠ-2800M
|
3900*1400*1500
|
φ800*2800/1
|
0.75
|
-
|
0-7
|
-
|
|
